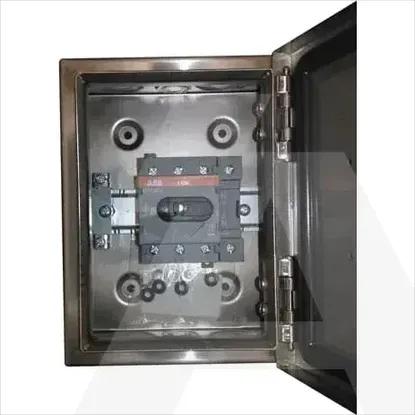

1SCA022567R0010 | OTR45B3M
Code: 1981595
ManufacturerABB
Catalog number1SCA022567R0010
TypeSwitch disconnector (low voltage)
CategorySwitch disconnector
EAN code6417019183220
Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •ABB
Technical specifications
Conditioned rated short-circuit current Iq-kA
Rated operating voltage750 - 750V
Number of auxiliary contacts as normally closed contact0
Depth90mm
Width150mm
Rated operation power at AC-3, 400 V-kW
Number of auxiliary contacts as normally open contact0
Height200mm
Motor drive integratedNo
Degree of protection (IP), front sideIP65
InterlockableYes
Type of control elementTurn button
Version as main switchYes
Number of switches1
Rated operation power at AC-23, 400 V22kW
Suitable for front mounting 4-holeNo
Version as safety switchNo
Suitable for front mounting centreNo
Rated short-time withstand current lcw1kA
Version as emergency stop installationNo
Suitable for floor mountingNo
Version as maintenance-/service switchYes
Colour control elementBlack
Number of auxiliary contacts as change-over contact0
Suitable for distribution board installationYes
Width in number of modular spacings-
Rated permanent current at AC-21, 400 V-A
Voltage release optionalNo
Device constructionComplete device in housing
Motor drive optionalNo
Suitable for intermediate mountingNo
Version as reversing switchNo
With pre-assembled cablingNo
Rated permanent current at AC-23, 400 V45A
Switching power at 400 V22kW
Degree of protection (NEMA)Other
Rated permanent current Iu63A
Number of poles3
Max. rated operation voltage Ue AC750V
