1SCA022567R0270 | OTR63B3M
Code: 1981596
ManufacturerABB
Catalog number1SCA022567R0270
TypeSwitch disconnector (low voltage)
CategorySwitch disconnector
EAN code6417019183244
Details

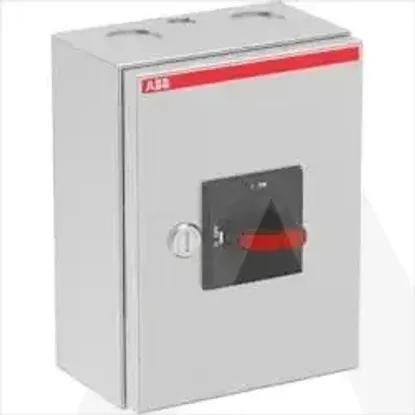

- •OTR63B3M ENCLOSED SWITCH DISCONNECTOR
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •Minimum order quantity: 1 pcs
- •ABB
Technical specifications
Rated operating voltage750 - 750V
Width in number of modular spacings-
Degree of protection (IP), front sideIP65
Width165mm
Depth110mm
Number of auxiliary contacts as normally open contact0
Height250mm
Conditioned rated short-circuit current Iq-kA
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as change-over contact0
Number of switches1
Rated operation power at AC-3, 400 V-kW
Version as main switchYes
InterlockableYes
Device constructionComplete device in housing
Rated permanent current at AC-23, 400 V75A
Motor drive integratedNo
Rated short-time withstand current lcw1.5kA
Voltage release optionalNo
Rated operation power at AC-23, 400 V37kW
Suitable for floor mountingNo
Degree of protection (NEMA)Other
Suitable for intermediate mountingNo
Version as maintenance-/service switchYes
Version as safety switchNo
Version as emergency stop installationNo
Motor drive optionalNo
Rated permanent current at AC-21, 400 V-A
Suitable for front mounting centreNo
Suitable for distribution board installationYes
Switching power at 400 V37kW
Version as reversing switchNo
Suitable for front mounting 4-holeNo
Type of control elementTurn button
Colour control elementBlack
With pre-assembled cablingNo
Rated permanent current Iu80A
Number of poles3
Max. rated operation voltage Ue AC750V
