Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •ABB
Technical specifications
Number of auxiliary contacts as change-over contact0
InterlockableNo
Number of auxiliary contacts as normally closed contact0
Width266mm
Conditioned rated short-circuit current Iq80kA
Width in number of modular spacings-
Number of poles3
Rated permanent current Iu800A
Rated operation power at AC-3, 400 V-kW
Depth140mm
Degree of protection (IP), front sideIP00
Rated operating voltage1000 - 1000V
Number of auxiliary contacts as normally open contact0
Height250mm
Number of switches1
Motor drive integratedNo
Type of electrical connection of main circuitBolt connection
Type of control elementLong turning handle
Suitable for front mounting centreNo
Version as main switchYes
Version as reversing switchNo
With pre-assembled cablingNo
Degree of protection (NEMA)Other
Max. rated operation voltage Ue AC1000V
Version as emergency stop installationNo
Voltage release optionalNo
Version as maintenance-/service switchYes
Suitable for front mounting 4-holeNo
Rated operation power at AC-23, 400 V450kW
Device constructionComplete device in housing
Rated permanent current at AC-23, 400 V800A
Suitable for floor mountingNo
Motor drive optionalNo
Colour control elementBlack
Rated short-time withstand current lcw20kA
Rated permanent current at AC-21, 400 V800A
Suitable for intermediate mountingNo
Suitable for distribution board installationYes
Switching power at 400 V450kW
Version as safety switchNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

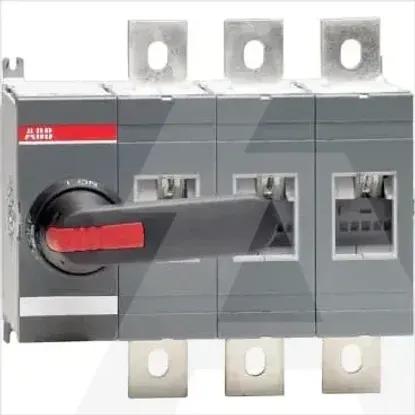

1SCA022718R9410 | OT800E03P
