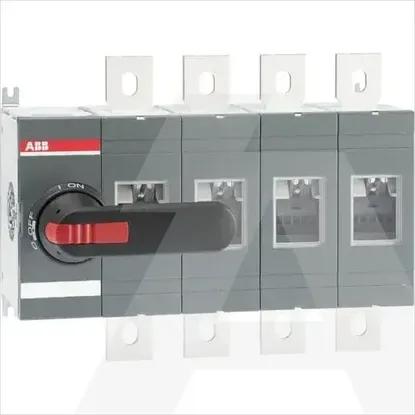

Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •ABB
Technical specifications
Rated permanent current Iu630A
Degree of protection (IP), front sideIP00
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as normally open contact0
Rated operation power at AC-3, 400 V-kW
Height250mm
Depth140mm
Width331mm
Number of poles4
Conditioned rated short-circuit current Iq80kA
Width in number of modular spacings-
Number of auxiliary contacts as change-over contact0
Rated operating voltage1000 - 1000V
Number of switches1
InterlockableNo
Version as safety switchNo
Version as emergency stop installationNo
Type of control elementLong turning handle
Motor drive integratedNo
Motor drive optionalNo
Rated short-time withstand current lcw20kA
Suitable for floor mountingNo
Version as maintenance-/service switchYes
Rated permanent current at AC-23, 400 V630A
Voltage release optionalNo
Suitable for front mounting centreNo
Device constructionComplete device in housing
Type of electrical connection of main circuitBolt connection
Suitable for front mounting 4-holeNo
Rated operation power at AC-23, 400 V355kW
Colour control elementBlack
Version as main switchYes
Suitable for intermediate mountingNo
Max. rated operation voltage Ue AC1000V
Suitable for distribution board installationYes
Switching power at 400 V355kW
Version as reversing switchNo
Degree of protection (NEMA)Other
Rated permanent current at AC-21, 400 V630A
With pre-assembled cablingNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
1SCA022719R2030 | OT630E04P
