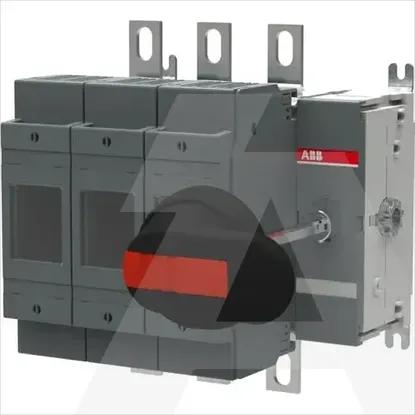

1SCA022720R1040 | OS200D30P
Code: 1981636
ManufacturerABB
Catalog number1SCA022720R1040
TypeFuse switch disconnector
CategoryFuse switch disconnector
EAN code6417019231358
Details
- •Low-voltage industrial components
- •Fuse switch disconnector
- •1 KOM
- •ABB
Technical specifications
Conditioned rated short-circuit current Iq80kA
Cable entryOther
Motor drive integratedNo
Rated short-time withstand current lcw8kA
Motor drive optionalNo
Equipped with connectorsYes
Version as emergency stop installationNo
Version as main switchYes
Suitable for busbar mountingYes
Rated operation power at AC-23, 400 V200kW
Position control elementRight
Suitable for front mountingNo
Type of control elementLong turning handle
Suitable for floor mountingNo
With error protectionNo
Version as safety switchYes
Type of electrical connection of main circuitBolt connection
Rated permanent current Iu200A
Number of poles3
Suitable for fusesNH0
Max. rated operation voltage Ue AC1000V
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
1SCA022720R1040 | OS200D30P
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage industrial components
- Fuse switch disconnector
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Conditioned rated short-circuit current Iq
80kA
Cable entry
Other
Motor drive integrated
Rated short-time withstand current lcw
8kA
Motor drive optional
Equipped with connectors
Version as emergency stop installation
Version as main switch
Suitable for busbar mounting
Rated operation power at AC-23, 400 V
200kW
Position control element
Right
Suitable for front mounting
Type of control element
Long turning handle
Suitable for floor mounting
With error protection
Version as safety switch
Type of electrical connection of main circuit
Bolt connection
Rated permanent current Iu
200A
Number of poles
3
Suitable for fuses
NH0
Max. rated operation voltage Ue AC
1000V
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
