Details
- •Low-voltage industrial components

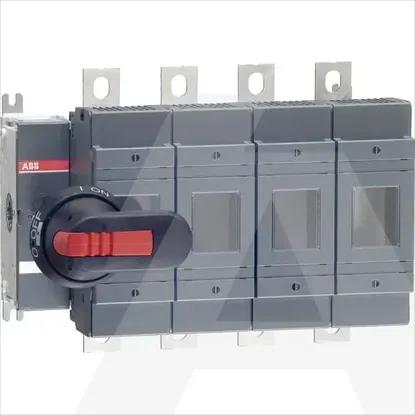

- •Fuse switch disconnector
- •1 KOM
- •ABB
Technical specifications
Rated permanent current Iu250A
Suitable for fusesNH0
Number of poles4
Type of electrical connection of main circuitBolt connection
Motor drive integratedNo
Cable entryOther
Conditioned rated short-circuit current Iq80kA
Type of control elementLong turning handle
Version as emergency stop installationNo
Suitable for busbar mountingYes
Rated short-time withstand current lcw8kA
Rated operation power at AC-23, 400 V250kW
Version as safety switchYes
Suitable for front mountingNo
Suitable for floor mountingNo
Version as main switchYes
Equipped with connectorsYes
Max. rated operation voltage Ue AC1000V
Position control elementRight
With error protectionNo
Motor drive optionalNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
1SCA022720R1210 | OS250D40N2P
