Details
- •Low-voltage industrial components

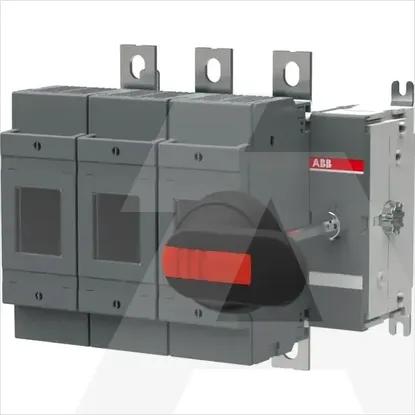

- •Fuse switch disconnector
- •1 KOM
- •ABB
Technical specifications
Cable entryOther
Type of electrical connection of main circuitBolt connection
Motor drive integratedNo
Version as emergency stop installationNo
Type of control elementLong turning handle
Rated operation power at AC-23, 400 V250kW
Version as safety switchYes
Version as main switchYes
Conditioned rated short-circuit current Iq80kA
Rated short-time withstand current lcw8kA
With error protectionNo
Suitable for busbar mountingYes
Motor drive optionalNo
Equipped with connectorsYes
Suitable for front mountingNo
Position control elementRight
Suitable for floor mountingNo
Rated permanent current Iu250A
Number of poles3
Suitable for fusesNH0
Max. rated operation voltage Ue AC1000V
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
1SCA022720R1550 | OS250D30P
