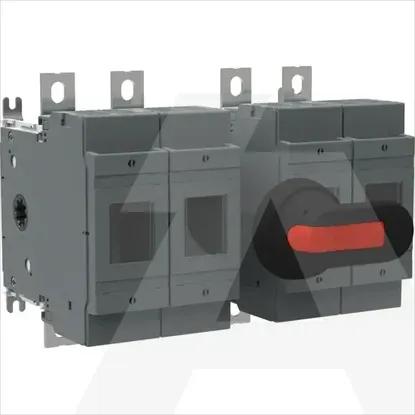

1SCA022726R8540 | OS250D22N1P
Code: 1981653
ManufacturerABB
Catalog number1SCA022726R8540
TypeFuse switch disconnector
CategoryFuse switch disconnector
EAN code6417019235134
Details
- •Low-voltage industrial components
- •Fuse switch disconnector
- •1 KOM
- •ABB
Technical specifications
Cable entryOther
Conditioned rated short-circuit current Iq80kA
Motor drive integratedNo
Version as main switchYes
Type of control elementLong turning handle
Version as emergency stop installationNo
Suitable for busbar mountingYes
Motor drive optionalNo
With error protectionNo
Type of electrical connection of main circuitBolt connection
Equipped with connectorsYes
Position control elementFront side
Rated operation power at AC-23, 400 V250kW
Suitable for front mountingNo
Version as safety switchYes
Rated short-time withstand current lcw8kA
Suitable for floor mountingNo
Rated permanent current Iu250A
Number of poles4
Suitable for fusesNH0
Max. rated operation voltage Ue AC1000V
