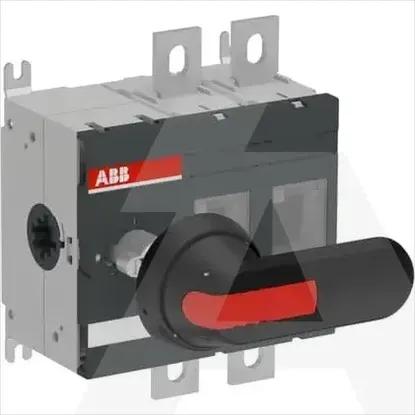

1SCA022741R7210 | OT400E02P
Code: 1981674
ManufacturerABB
Catalog number1SCA022741R7210
TypeSwitch disconnector (low voltage)
CategorySwitch disconnector
EAN code6417019240336
Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •ABB
Technical specifications
Width147mm
Height185mm
Rated operation power at AC-3, 400 V-kW
Depth107mm
Width in number of modular spacings-
Number of auxiliary contacts as normally open contact0
Conditioned rated short-circuit current Iq-kA
Number of auxiliary contacts as normally closed contact0
Type of electrical connection of main circuitBolt connection
Type of control elementLong turning handle
Rated operating voltage1000 - 1000V
Version as safety switchNo
Number of switches1
Number of auxiliary contacts as change-over contact0
Version as maintenance-/service switchYes
Version as emergency stop installationNo
Suitable for distribution board installationYes
InterlockableNo
Motor drive integratedNo
Suitable for front mounting 4-holeNo
Suitable for floor mountingNo
Rated short-time withstand current lcw15kA
Version as main switchYes
Suitable for front mounting centreNo
Colour control elementBlack
Degree of protection (IP), front sideIP00
Rated operation power at AC-23, 400 V230kW
Voltage release optionalNo
Device constructionComplete device in housing
Version as reversing switchNo
Degree of protection (NEMA)Other
Suitable for intermediate mountingNo
Rated permanent current at AC-21, 400 V400A
Motor drive optionalNo
With pre-assembled cablingNo
Switching power at 400 V230kW
Rated permanent current at AC-23, 400 V400A
Rated permanent current Iu400A
Number of poles2
Max. rated operation voltage Ue AC1000V
