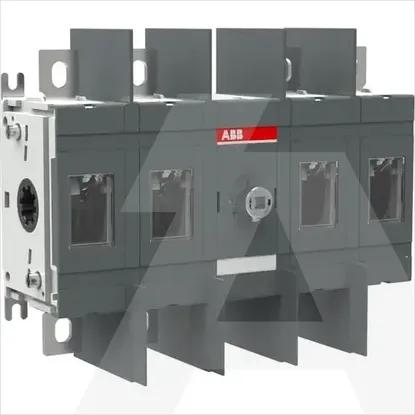

1SCA022741R8960 | OT200U22
Code: 1981675
ManufacturerABB
Catalog number1SCA022741R8960
TypeSwitch disconnector (low voltage)
CategorySwitch disconnector
EAN code6417019240374
Details
- •OT200U22 SWITCH-DISCONNECTOR
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •Minimum order quantity: 1 pcs
- •ABB
Technical specifications
Width217.5mm
Height170mm
Rated operation power at AC-3, 400 V-kW
Number of auxiliary contacts as normally closed contact0
Depth82.5mm
Number of auxiliary contacts as normally open contact0
Voltage release optionalNo
Degree of protection (IP), front sideIP00
Type of electrical connection of main circuitBolt connection
Version as safety switchNo
Width in number of modular spacings-
InterlockableNo
Rated operating voltage1000 - 1000V
Suitable for front mounting centreNo
Type of control elementOther
Suitable for front mounting 4-holeNo
Motor drive integratedNo
Version as main switchYes
Motor drive optionalNo
Rated short-time withstand current lcw8kA
Rated operation power at AC-23, 400 V110kW
Suitable for distribution board installationYes
Version as emergency stop installationNo
Number of switches1
Conditioned rated short-circuit current Iq-kA
Version as maintenance-/service switchYes
Suitable for intermediate mountingNo
Number of auxiliary contacts as change-over contact0
Suitable for floor mountingNo
Device constructionComplete device in housing
Rated permanent current at AC-21, 400 V-A
Switching power at 400 V110kW
Degree of protection (NEMA)Other
Rated permanent current at AC-23, 400 V250A
Version as reversing switchNo
With pre-assembled cablingNo
Rated permanent current Iu200A
Number of poles4
Max. rated operation voltage Ue AC1000V
