Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •ABB
Technical specifications
Number of auxiliary contacts as normally open contact0
Width221mm
Rated permanent current Iu400A
Rated operation power at AC-3, 400 V-kW
Height220mm
Number of auxiliary contacts as normally closed contact0
Depth105mm
Number of poles3
Conditioned rated short-circuit current Iq-kA
Number of auxiliary contacts as change-over contact0
Degree of protection (IP), front sideIP00
Width in number of modular spacings-
Rated operating voltage1000 - 1000V
InterlockableNo
Rated operation power at AC-23, 400 V220kW
Version as safety switchNo
Type of control elementOther
Version as emergency stop installationNo
Version as main switchYes
Version as maintenance-/service switchYes
Motor drive integratedNo
Rated short-time withstand current lcw15kA
Type of electrical connection of main circuitBolt connection
Number of switches1
Suitable for front mounting centreNo
Suitable for distribution board installationYes
Motor drive optionalNo
Suitable for intermediate mountingNo
Suitable for floor mountingNo
Max. rated operation voltage Ue AC1000V
Suitable for front mounting 4-holeNo
Rated permanent current at AC-21, 400 V-A
Device constructionComplete device in housing
Rated permanent current at AC-23, 400 V400A
Degree of protection (NEMA)Other
Voltage release optionalNo
Version as reversing switchNo
Switching power at 400 V220kW
With pre-assembled cablingNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

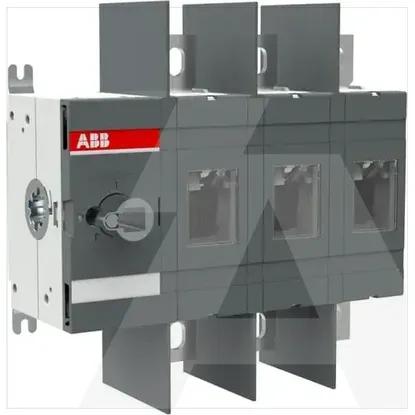

1SCA022747R6490 | OT400U03
