Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •ABB
Technical specifications
Width167mm
Depth105mm
Height220mm
Number of poles2
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as normally closed contact0
InterlockableNo
Rated operation power at AC-3, 400 V-kW
Number of switches1
Number of auxiliary contacts as change-over contact0
Width in number of modular spacings-
Conditioned rated short-circuit current Iq-kA
Degree of protection (IP), front sideIP00
Rated permanent current Iu400A
Rated operating voltage1000 - 1000V
Type of control elementOther
Motor drive integratedNo
Version as emergency stop installationNo
Type of electrical connection of main circuitBolt connection
Rated operation power at AC-23, 400 V-kW
Version as main switchYes
Rated short-time withstand current lcw15kA
Rated permanent current at AC-21, 400 V-A
Suitable for intermediate mountingNo
Version as maintenance-/service switchYes
Suitable for front mounting centreNo
Suitable for distribution board installationYes
Device constructionComplete device in housing
Suitable for floor mountingNo
Version as reversing switchNo
Motor drive optionalNo
Version as safety switchNo
Voltage release optionalNo
Max. rated operation voltage Ue AC1000V
Rated permanent current at AC-23, 400 V-A
Switching power at 400 V-kW
Suitable for front mounting 4-holeNo
With pre-assembled cablingNo
Degree of protection (NEMA)Other
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

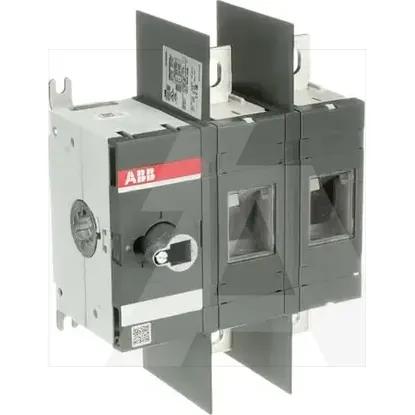

1SCA022748R1140 | OT400U02
