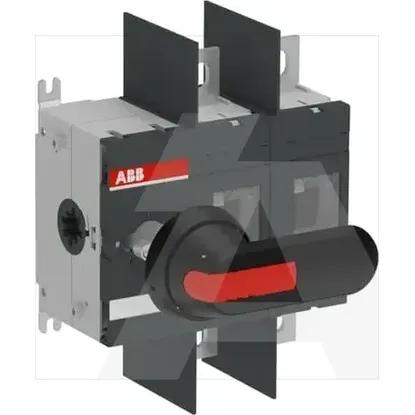

Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •ABB
Technical specifications
Height220mm
Depth105mm
Number of auxiliary contacts as normally closed contact0
Rated permanent current Iu400A
Width167mm
Rated operation power at AC-3, 400 V-kW
Number of auxiliary contacts as normally open contact0
Version as maintenance-/service switchYes
Version as emergency stop installationNo
Rated operation power at AC-23, 400 V-kW
Width in number of modular spacings-
Motor drive integratedNo
Suitable for front mounting centreNo
Number of switches1
Suitable for intermediate mountingNo
InterlockableNo
Rated short-time withstand current lcw15kA
Version as safety switchNo
Rated operating voltage1000 - 1000V
Type of electrical connection of main circuitBolt connection
Number of poles2
Number of auxiliary contacts as change-over contact0
Max. rated operation voltage Ue AC1000V
Colour control elementBlack
Version as main switchYes
Suitable for front mounting 4-holeNo
Conditioned rated short-circuit current Iq-kA
Degree of protection (IP), front sideIP00
Suitable for distribution board installationYes
Suitable for floor mountingNo
Type of control elementLong turning handle
Motor drive optionalNo
Rated permanent current at AC-21, 400 V-A
Voltage release optionalNo
Device constructionComplete device in housing
Degree of protection (NEMA)Other
Rated permanent current at AC-23, 400 V-A
Version as reversing switchNo
With pre-assembled cablingNo
Switching power at 400 V-kW
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
1SCA022748R1310 | OT400U02P
