Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •ABB
Technical specifications
Width221mm
Height220mm
Depth105mm
Rated operation power at AC-3, 400 V-kW
Rated permanent current Iu400A
Number of poles3
Number of auxiliary contacts as normally open contact0
Number of switches1
Degree of protection (IP), front sideIP00
Number of auxiliary contacts as normally closed contact0
Width in number of modular spacings-
Rated operating voltage1000 - 1000V
Number of auxiliary contacts as change-over contact0
Conditioned rated short-circuit current Iq-kA
InterlockableNo
Motor drive integratedNo
Type of control elementLong turning handle
Type of electrical connection of main circuitBolt connection
Version as emergency stop installationNo
Version as maintenance-/service switchYes
Rated operation power at AC-23, 400 V220kW
Version as main switchYes
Version as safety switchNo
Suitable for front mounting 4-holeNo
Colour control elementBlack
Suitable for front mounting centreNo
Suitable for floor mountingNo
Rated short-time withstand current lcw15kA
Suitable for intermediate mountingNo
Voltage release optionalNo
Motor drive optionalNo
Suitable for distribution board installationYes
Max. rated operation voltage Ue AC1000V
Switching power at 400 V220kW
Rated permanent current at AC-21, 400 V-A
With pre-assembled cablingNo
Rated permanent current at AC-23, 400 V400A
Version as reversing switchNo
Device constructionComplete device in housing
Degree of protection (NEMA)Other
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

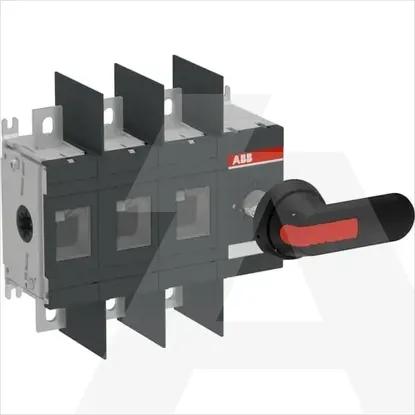

1SCA022748R1570 | OT400U30P
