Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •ABB
Technical specifications
Rated operating voltage1000 - 1000V
Number of poles4
Rated permanent current Iu400A
Conditioned rated short-circuit current Iq-kA
Width280mm
Depth105mm
Number of auxiliary contacts as normally closed contact0
Height220mm
Number of auxiliary contacts as normally open contact0
Rated operation power at AC-3, 400 V-kW
Degree of protection (IP), front sideIP00
Number of auxiliary contacts as change-over contact0
Width in number of modular spacings-
Rated permanent current at AC-21, 400 V-A
Voltage release optionalNo
Rated short-time withstand current lcw15kA
Motor drive integratedNo
Device constructionComplete device in housing
Type of control elementOther
Rated operation power at AC-23, 400 V220kW
Type of electrical connection of main circuitBolt connection
Suitable for front mounting 4-holeNo
Suitable for distribution board installationYes
Motor drive optionalNo
Version as maintenance-/service switchYes
Version as emergency stop installationNo
Version as safety switchNo
Max. rated operation voltage Ue AC1000V
Number of switches1
Version as main switchYes
InterlockableNo
Suitable for intermediate mountingNo
Suitable for floor mountingNo
Suitable for front mounting centreNo
Rated permanent current at AC-23, 400 V400A
Switching power at 400 V220kW
Version as reversing switchNo
With pre-assembled cablingNo
Degree of protection (NEMA)Other
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

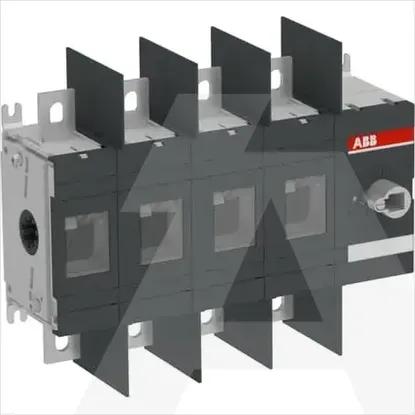

1SCA022748R1650 | OT400U40
