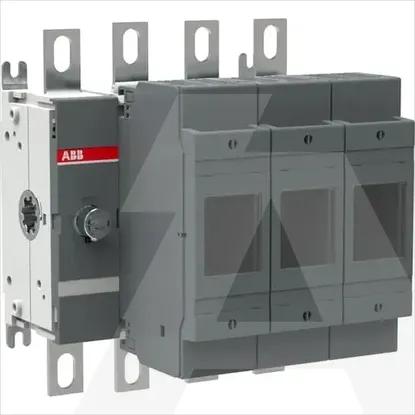

1SCA022749R8460 | OS200D03N3
Code: 1981690
ManufacturerABB
Catalog number1SCA022749R8460
TypeFuse switch disconnector
CategoryFuse switch disconnector
EAN code6417019243528
Details
- •Low-voltage industrial components
- •Fuse switch disconnector
- •1 KOM
- •ABB
Technical specifications
Cable entryOther
Motor drive optionalNo
Equipped with connectorsYes
Version as safety switchYes
Motor drive integratedNo
Rated operation power at AC-23, 400 V200kW
Suitable for front mountingNo
Suitable for floor mountingNo
Type of control elementShort thumb-grip
Suitable for busbar mountingYes
Position control elementLeft
Conditioned rated short-circuit current Iq80kA
Version as main switchYes
Type of electrical connection of main circuitBolt connection
With error protectionNo
Rated short-time withstand current lcw8kA
Version as emergency stop installationNo
Rated permanent current Iu200A
Number of poles3
Suitable for fusesNH0
Max. rated operation voltage Ue AC1000V
