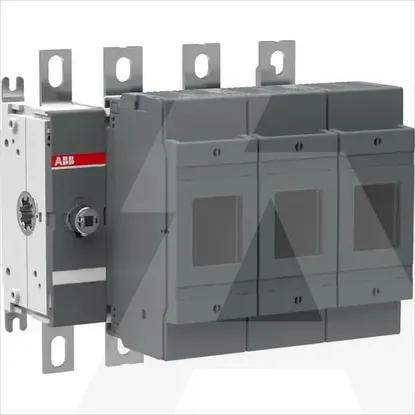

1SCA022749R9190 | OS250D03N3
Code: 1981691
ManufacturerABB
Catalog number1SCA022749R9190
TypeFuse switch disconnector
CategoryFuse switch disconnector
EAN code6417019243573
Details
- •Low-voltage industrial components
- •Fuse switch disconnector
- •1 KOM
- •ABB
Technical specifications
Cable entryOther
Motor drive integratedNo
Conditioned rated short-circuit current Iq80kA
Version as main switchYes
Equipped with connectorsYes
Version as emergency stop installationNo
Motor drive optionalNo
Suitable for busbar mountingYes
Suitable for floor mountingNo
Suitable for front mountingNo
Type of control elementShort thumb-grip
Version as safety switchYes
Rated short-time withstand current lcw8kA
With error protectionNo
Rated operation power at AC-23, 400 V250kW
Position control elementLeft
Type of electrical connection of main circuitBolt connection
Rated permanent current Iu250A
Number of poles3
Suitable for fusesNH0
Max. rated operation voltage Ue AC1000V
