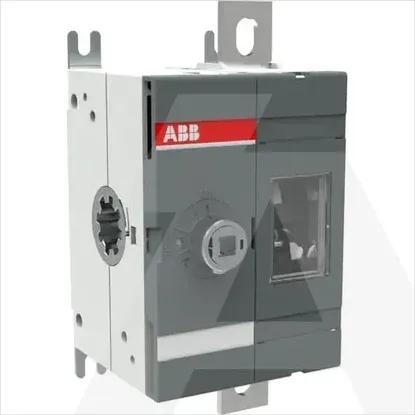

1SCA022750R5000 | OT200E01
Code: 1981692
ManufacturerABB
Catalog number1SCA022750R5000
TypeSwitch disconnector (low voltage)
CategorySwitch disconnector
EAN code6417019243870
Details
- •OT200E01 SWITCH-DISCONNECTOR
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •Minimum order quantity: 1 pcs
- •ABB
Technical specifications
Degree of protection (IP), front sideIP00
Height150mm
Width75.5mm
Number of auxiliary contacts as normally open contact0
Conditioned rated short-circuit current Iq-kA
Number of auxiliary contacts as change-over contact0
Rated operation power at AC-3, 400 V-kW
Rated operating voltage1000 - 1000V
Depth82.5mm
Width in number of modular spacings-
Number of switches1
Motor drive integratedNo
InterlockableNo
Number of auxiliary contacts as normally closed contact0
Version as main switchYes
Motor drive optionalNo
Suitable for floor mountingNo
Suitable for intermediate mountingNo
Rated operation power at AC-23, 400 V110kW
Voltage release optionalNo
Type of control elementOther
Suitable for distribution board installationYes
Suitable for front mounting 4-holeNo
Suitable for front mounting centreNo
Version as emergency stop installationNo
Type of electrical connection of main circuitBolt connection
Version as safety switchNo
Rated short-time withstand current lcw8kA
Version as maintenance-/service switchYes
With pre-assembled cablingNo
Version as reversing switchNo
Degree of protection (NEMA)Other
Device constructionComplete device in housing
Switching power at 400 V110kW
Rated permanent current at AC-21, 400 V200A
Rated permanent current at AC-23, 400 V200A
Rated permanent current Iu200A
Number of poles1
Max. rated operation voltage Ue AC1000V
