Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •ABB
Technical specifications
Width75.5mm
Height150mm
Number of poles1
Number of auxiliary contacts as normally closed contact0
Depth82.5mm
Number of auxiliary contacts as normally open contact0
Rated permanent current Iu200A
Rated operation power at AC-3, 400 V-kW
Width in number of modular spacings-
Rated operating voltage1000 - 1000V
Number of auxiliary contacts as change-over contact0
Degree of protection (IP), front sideIP00
Conditioned rated short-circuit current Iq-kA
InterlockableNo
Motor drive optionalNo
Suitable for floor mountingNo
Rated operation power at AC-23, 400 V110kW
Suitable for intermediate mountingNo
Version as main switchYes
Version as emergency stop installationNo
Rated short-time withstand current lcw8kA
Max. rated operation voltage Ue AC1000V
Colour control elementBlack
Type of electrical connection of main circuitBolt connection
Version as maintenance-/service switchYes
Version as safety switchNo
Type of control elementLong turning handle
Suitable for front mounting 4-holeNo
Suitable for front mounting centreNo
Suitable for distribution board installationYes
Number of switches1
Motor drive integratedNo
Version as reversing switchNo
Voltage release optionalNo
Rated permanent current at AC-21, 400 V200A
Rated permanent current at AC-23, 400 V200A
Switching power at 400 V110kW
Device constructionComplete device in housing
With pre-assembled cablingNo
Degree of protection (NEMA)Other
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

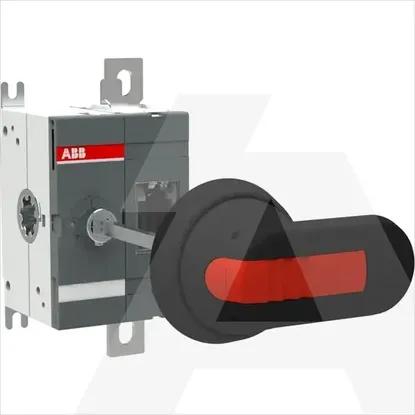

1SCA022750R5180 | OT200E01P
