Details
- •Low-voltage industrial components

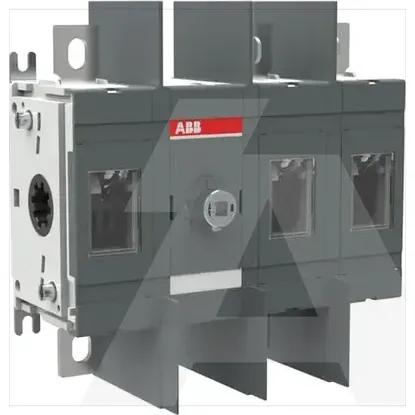

- •Switch disconnector (low voltage)
- •1 KOM
- •ABB
Technical specifications
Depth82.5mm
Height170mm
Width174.5mm
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as change-over contact0
Type of control elementOther
Number of switches1
Version as emergency stop installationNo
Type of electrical connection of main circuitBolt connection
Motor drive integratedNo
Suitable for front mounting 4-holeNo
Rated operation power at AC-23, 400 V110kW
Rated short-time withstand current lcw8kA
Suitable for floor mountingNo
Degree of protection (IP), front sideIP00
InterlockableNo
Version as maintenance-/service switchYes
Suitable for front mounting centreNo
Width in number of modular spacings-
Rated operating voltage1000 - 1000V
Version as safety switchNo
Conditioned rated short-circuit current Iq-kA
Rated permanent current Iu200A
Rated operation power at AC-3, 400 V-kW
Version as main switchYes
Number of poles3
Number of auxiliary contacts as normally closed contact0
Rated permanent current at AC-21, 400 V-A
Suitable for intermediate mountingNo
With pre-assembled cablingNo
Suitable for distribution board installationYes
Motor drive optionalNo
Max. rated operation voltage Ue AC1000V
Version as reversing switchNo
Degree of protection (NEMA)Other
Rated permanent current at AC-23, 400 V250A
Device constructionComplete device in housing
Switching power at 400 V110kW
Voltage release optionalNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
1SCA022752R1890 | OT200U12
