Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •ABB
Technical specifications
Depth107mm
Width152mm
Height185mm
Conditioned rated short-circuit current Iq-kA
Number of auxiliary contacts as normally closed contact0
Rated operating voltage1000 - 1000V
Width in number of modular spacings-
Rated permanent current Iu400A
Version as safety switchNo
Version as main switchYes
Type of electrical connection of main circuitBolt connection
Number of switches1
Motor drive integratedNo
Rated short-time withstand current lcw15kA
Number of auxiliary contacts as normally open contact0
Number of poles2
Rated operation power at AC-23, 400 V230kW
Degree of protection (IP), front sideIP00
Type of control elementOther
Suitable for floor mountingNo
Version as maintenance-/service switchYes
Number of auxiliary contacts as change-over contact0
InterlockableNo
Rated operation power at AC-3, 400 V-kW
Version as emergency stop installationNo
Suitable for front mounting 4-holeNo
Suitable for front mounting centreNo
Voltage release optionalNo
Rated permanent current at AC-23, 400 V400A
Degree of protection (NEMA)Other
Device constructionComplete device in housing
Version as reversing switchNo
Suitable for intermediate mountingNo
With pre-assembled cablingNo
Rated permanent current at AC-21, 400 V400A
Switching power at 400 V230kW
Motor drive optionalNo
Suitable for distribution board installationYes
Max. rated operation voltage Ue AC1000V
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

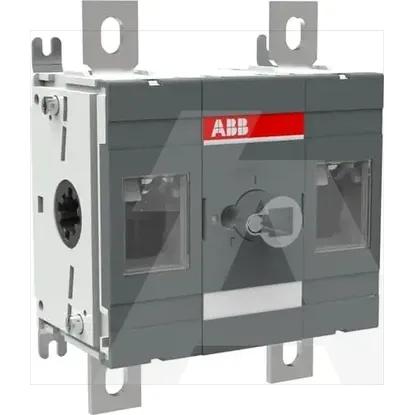

1SCA022752R9280 | OT400E11
