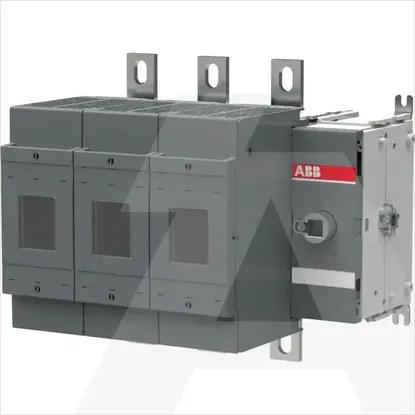

1SCA022753R1180 | OS400D30
Code: 1981703
ManufacturerABB
Catalog number1SCA022753R1180
TypeFuse switch disconnector
CategoryFuse switch disconnector
EAN code6417019244815
Details
- •Low-voltage industrial components
- •Fuse switch disconnector
- •1 KOM
- •ABB
Technical specifications
Cable entryOther
Conditioned rated short-circuit current Iq80kA
Motor drive integratedNo
Version as safety switchYes
Rated short-time withstand current lcw14kA
Version as emergency stop installationNo
Type of electrical connection of main circuitBolt connection
Suitable for busbar mountingYes
Suitable for front mountingNo
Suitable for floor mountingNo
Type of control elementShort thumb-grip
Version as main switchYes
Rated operation power at AC-23, 400 V400kW
Equipped with connectorsYes
Position control elementRight
Motor drive optionalNo
With error protectionNo
Rated permanent current Iu400A
Number of poles3
Suitable for fusesNH0
Max. rated operation voltage Ue AC1000V
