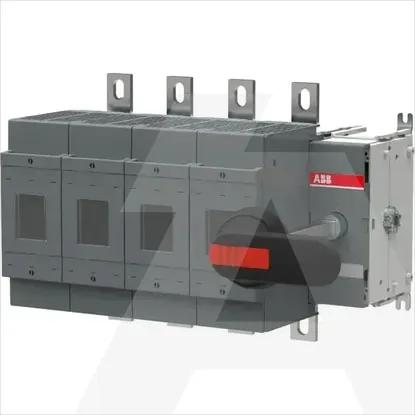

1SCA022753R3550 | OS400D40N2P
Code: 1981706
ManufacturerABB
Catalog number1SCA022753R3550
TypeFuse switch disconnector
CategoryFuse switch disconnector
EAN code6417019244983
Details
- •Low-voltage industrial components
- •Fuse switch disconnector
- •1 KOM
- •ABB
Technical specifications
Cable entryOther
Type of electrical connection of main circuitBolt connection
Motor drive integratedNo
Version as emergency stop installationNo
Conditioned rated short-circuit current Iq80kA
Suitable for floor mountingNo
Version as main switchYes
Suitable for busbar mountingYes
Suitable for front mountingNo
Rated short-time withstand current lcw14kA
Type of control elementLong turning handle
Version as safety switchYes
Rated operation power at AC-23, 400 V400kW
With error protectionNo
Motor drive optionalNo
Equipped with connectorsYes
Position control elementRight
Rated permanent current Iu400A
Number of poles4
Suitable for fusesNH0
Max. rated operation voltage Ue AC1000V
