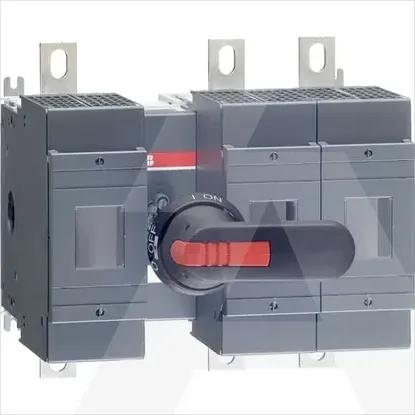

1SCA022753R3800 | OS400D12P
Code: 1981708
ManufacturerABB
Catalog number1SCA022753R3800
TypeFuse switch disconnector
CategoryFuse switch disconnector
EAN code6417019245010
Details
- •Low-voltage industrial components
- •Fuse switch disconnector
- •1 KOM
- •ABB
Technical specifications
Cable entryOther
Conditioned rated short-circuit current Iq80kA
Type of control elementLong turning handle
Rated operation power at AC-23, 400 V400kW
Type of electrical connection of main circuitBolt connection
Rated short-time withstand current lcw14kA
Suitable for busbar mountingYes
Motor drive optionalNo
Suitable for floor mountingNo
Version as safety switchYes
Equipped with connectorsYes
Version as main switchYes
Suitable for front mountingNo
Position control elementFront side
Version as emergency stop installationNo
With error protectionNo
Motor drive integratedNo
Rated permanent current Iu400A
Number of poles3
Suitable for fusesNH0
Max. rated operation voltage Ue AC1000V
