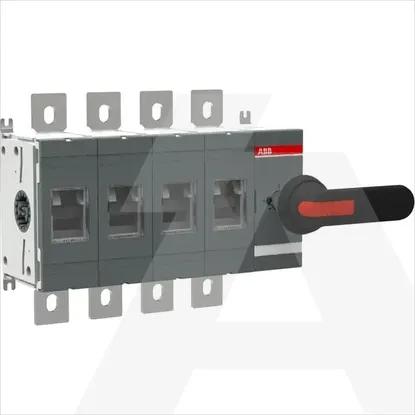

1SCA022753R5090 | OT800E40P
Code: 1981713
ManufacturerABB
Catalog number1SCA022753R5090
TypeSwitch disconnector (low voltage)
CategorySwitch disconnector
EAN code6417019245102
Details
- •OT800E40P SWITCH-DISCONNECTOR
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •Minimum order quantity: 1 pcs
- •ABB
Technical specifications
Depth140mm
Width331mm
Rated operation power at AC-3, 400 V-kW
Number of auxiliary contacts as normally closed contact0
Height250mm
Number of auxiliary contacts as normally open contact0
Rated operating voltage1000 - 1000V
Conditioned rated short-circuit current Iq-kA
Degree of protection (IP), front sideIP00
Width in number of modular spacings-
Version as maintenance-/service switchYes
Version as main switchYes
Number of switches1
Rated operation power at AC-23, 400 V450kW
InterlockableNo
Voltage release optionalNo
Suitable for distribution board installationYes
Type of electrical connection of main circuitBolt connection
Colour control elementBlack
Version as safety switchNo
Suitable for floor mountingNo
Rated short-time withstand current lcw20kA
Motor drive integratedNo
Motor drive optionalNo
Suitable for front mounting 4-holeNo
Version as emergency stop installationNo
Type of control elementLong turning handle
Suitable for front mounting centreNo
Number of auxiliary contacts as change-over contact0
Device constructionComplete device in housing
Rated permanent current at AC-21, 400 V800A
Suitable for intermediate mountingNo
Rated permanent current at AC-23, 400 V800A
Version as reversing switchNo
With pre-assembled cablingNo
Switching power at 400 V450kW
Degree of protection (NEMA)Other
Rated permanent current Iu800A
Number of poles4
Max. rated operation voltage Ue AC1000V
