Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •ABB
Technical specifications
Number of auxiliary contacts as normally open contact0
Height250mm
Rated permanent current Iu800A
Depth140mm
Number of poles3
Rated operation power at AC-3, 400 V-kW
Width266mm
Number of auxiliary contacts as normally closed contact0
Rated operating voltage1000 - 1000V
Conditioned rated short-circuit current Iq80kA
Width in number of modular spacings-
Motor drive integratedNo
Rated operation power at AC-23, 400 V450kW
InterlockableNo
Suitable for floor mountingNo
Suitable for front mounting 4-holeNo
Motor drive optionalNo
Version as safety switchNo
Degree of protection (IP), front sideIP00
Number of auxiliary contacts as change-over contact0
Version as main switchYes
Rated short-time withstand current lcw20kA
Version as maintenance-/service switchYes
Suitable for front mounting centreNo
Suitable for distribution board installationYes
Suitable for intermediate mountingNo
Version as emergency stop installationNo
Max. rated operation voltage Ue AC1000V
Type of electrical connection of main circuitBolt connection
Type of control elementLong turning handle
Colour control elementBlack
Switching power at 400 V450kW
Voltage release optionalNo
Rated permanent current at AC-21, 400 V800A
Device constructionComplete device in housing
Number of switches1
Version as reversing switchNo
With pre-assembled cablingNo
Degree of protection (NEMA)Other
Rated permanent current at AC-23, 400 V800A
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

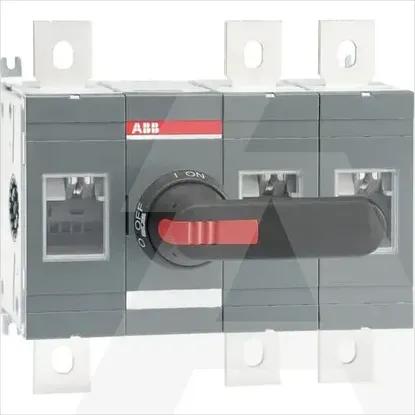

1SCA022753R5170 | OT800E12P
