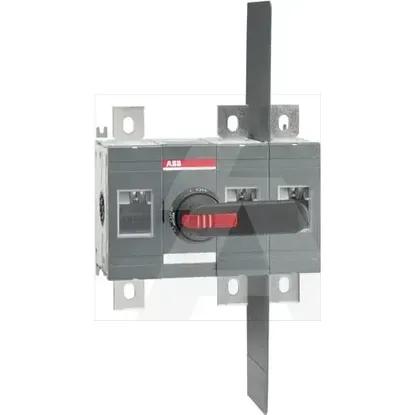

1SCA022753R7710 | OT600U12P
Code: 1981717
ManufacturerABB
Catalog number1SCA022753R7710
TypeSwitch disconnector (low voltage)
CategorySwitch disconnector
EAN code6417019245362
Details
- •OT600U12P SWITCH-DISCONNECTOR
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •Minimum order quantity: 1 pcs
- •ABB
Technical specifications
Width266mm
Rated operation power at AC-3, 400 V-kW
Number of auxiliary contacts as normally open contact0
Depth140mm
Height250mm
Number of switches1
Number of auxiliary contacts as change-over contact0
Conditioned rated short-circuit current Iq-kA
Degree of protection (IP), front sideIP00
Width in number of modular spacings-
Rated operating voltage1000 - 1000V
Number of auxiliary contacts as normally closed contact0
Suitable for floor mountingNo
Suitable for distribution board installationYes
InterlockableNo
Type of control elementLong turning handle
Version as emergency stop installationNo
Version as main switchYes
Colour control elementBlack
Suitable for front mounting 4-holeNo
Version as safety switchNo
Type of electrical connection of main circuitBolt connection
Device constructionComplete device in housing
Suitable for intermediate mountingNo
Motor drive optionalNo
Voltage release optionalNo
Rated permanent current at AC-21, 400 V800A
Version as maintenance-/service switchYes
Motor drive integratedNo
Rated short-time withstand current lcw20kA
Suitable for front mounting centreNo
Rated operation power at AC-23, 400 V450kW
Switching power at 400 V450kW
Rated permanent current at AC-23, 400 V800A
Degree of protection (NEMA)Other
Version as reversing switchNo
With pre-assembled cablingNo
Rated permanent current Iu600A
Number of poles3
Max. rated operation voltage Ue AC1000V
