Details
- •Low-voltage industrial components
- •Switch disconnector
- •1 KOM
- •ABB
Technical specifications
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as normally open contact0
Rated operation power at AC-3, 400 V-kW
Rated permanent current Iu600A
Number of auxiliary contacts as change-over contact0
Rated operating voltage1000 - 1000V
Number of poles4
Conditioned rated short-circuit current Iq-kA
Degree of protection (IP), front sideOther
Suitable for floor mountingNo
Version as emergency stop installationNo
Number of switches1
Type of control elementLong turning handle
Version as safety switchNo
Colour control elementBlack
Version as maintenance-/service switchYes
Motor drive integratedNo
Version as main switchYes
Rated operation power at AC-23, 400 V450kW
Rated short-time withstand current lcw20kA
InterlockableYes
Type of electrical connection of main circuitBolt connection
Motor drive optionalNo
Degree of protection (NEMA)1
Max. rated operation voltage Ue AC1000V
Suitable for front mounting centreNo
Suitable for distribution board installationYes
Suitable for intermediate mountingNo
Rated permanent current at AC-23, 400 V800A
Version as reversing switchNo
Device constructionBuilt-in device fixed built-in technique
Suitable for front mounting 4-holeNo
Voltage release optionalNo
Rated permanent current at AC-21, 400 V800A
Switching power at 400 V450kW
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

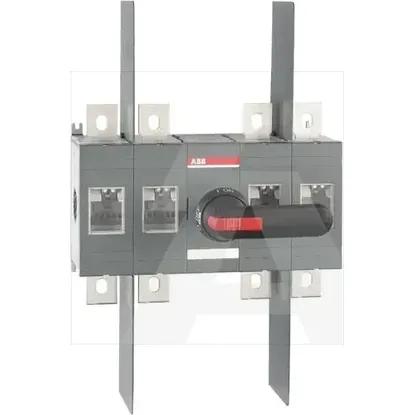

1SCA022753R7890 | OT600U22P
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage industrial components
- Switch disconnector
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Number of auxiliary contacts as normally closed contact
0
Number of auxiliary contacts as normally open contact
0
Rated operation power at AC-3, 400 V
-kW
Rated permanent current Iu
600A
Number of auxiliary contacts as change-over contact
0
Rated operating voltage
1000 .. 1000V
Number of poles
4
Conditioned rated short-circuit current Iq
-kA
Degree of protection (IP), front side
Other
Suitable for floor mounting
Version as emergency stop installation
Number of switches
1
Type of control element
Long turning handle
Version as safety switch
Colour control element
Black
Version as maintenance-/service switch
Motor drive integrated
Version as main switch
Rated operation power at AC-23, 400 V
450kW
Rated short-time withstand current lcw
20kA
Interlockable
Type of electrical connection of main circuit
Bolt connection
Motor drive optional
Degree of protection (NEMA)
1
Max. rated operation voltage Ue AC
1000V
Suitable for front mounting centre
Suitable for distribution board installation
Suitable for intermediate mounting
Rated permanent current at AC-23, 400 V
800A
Version as reversing switch
Device construction
Built-in device fixed built-in technique
Suitable for front mounting 4-hole
Voltage release optional
Rated permanent current at AC-21, 400 V
800A
Switching power at 400 V
450kW
