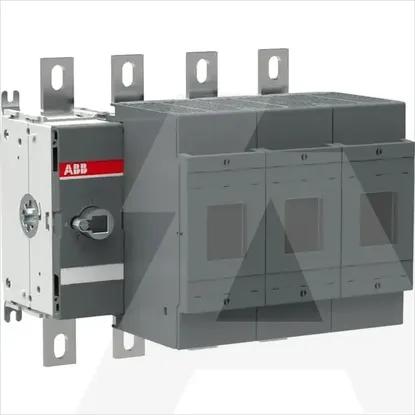

1SCA022754R0090 | OS400D03N3
Code: 1981719
ManufacturerABB
Catalog number1SCA022754R0090
TypeFuse switch disconnector
CategoryFuse switch disconnector
EAN code6417019245515
Details
- •Low-voltage industrial components
- •Fuse switch disconnector
- •1 KOM
- •ABB
Technical specifications
Conditioned rated short-circuit current Iq80kA
Cable entryOther
Rated short-time withstand current lcw14kA
Motor drive integratedNo
Version as safety switchYes
Rated operation power at AC-23, 400 V400kW
Version as main switchYes
Type of control elementShort thumb-grip
Version as emergency stop installationNo
Type of electrical connection of main circuitBolt connection
Equipped with connectorsYes
Position control elementLeft
Suitable for front mountingNo
Suitable for floor mountingNo
Motor drive optionalNo
With error protectionNo
Suitable for busbar mountingYes
Rated permanent current Iu400A
Number of poles3
Suitable for fusesNH0
Max. rated operation voltage Ue AC1000V
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
1SCA022754R0090 | OS400D03N3
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage industrial components
- Fuse switch disconnector
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Conditioned rated short-circuit current Iq
80kA
Cable entry
Other
Rated short-time withstand current lcw
14kA
Motor drive integrated
Version as safety switch
Rated operation power at AC-23, 400 V
400kW
Version as main switch
Type of control element
Short thumb-grip
Version as emergency stop installation
Type of electrical connection of main circuit
Bolt connection
Equipped with connectors
Position control element
Left
Suitable for front mounting
Suitable for floor mounting
Motor drive optional
With error protection
Suitable for busbar mounting
Rated permanent current Iu
400A
Number of poles
3
Suitable for fuses
NH0
Max. rated operation voltage Ue AC
1000V
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
