Details
- •Low-voltage industrial components
- •Switch disconnector
- •1 KOM
- •ABB
Technical specifications
Rated operating voltage1000 - 1000V
Rated operation power at AC-3, 400 V-kW
Conditioned rated short-circuit current Iq-kA
Number of auxiliary contacts as normally closed contact0
Number of poles3
Number of auxiliary contacts as normally open contact0
Rated permanent current Iu400A
Version as main switchYes
Number of switches1
Number of auxiliary contacts as change-over contact0
Version as emergency stop installationNo
Degree of protection (IP), front sideOther
Type of control elementLong turning handle
Type of electrical connection of main circuitBolt connection
InterlockableYes
Motor drive integratedNo
Suitable for distribution board installationYes
Suitable for floor mountingNo
Version as safety switchNo
Suitable for front mounting 4-holeNo
Suitable for intermediate mountingNo
Colour control elementBlack
Rated permanent current at AC-21, 400 V400A
Voltage release optionalNo
Degree of protection (NEMA)1
Rated operation power at AC-23, 400 V220kW
Switching power at 400 V220kW
Rated short-time withstand current lcw15kA
Suitable for front mounting centreNo
Device constructionBuilt-in device fixed built-in technique
Rated permanent current at AC-23, 400 V400A
Motor drive optionalNo
Version as maintenance-/service switchYes
Version as reversing switchNo
Max. rated operation voltage Ue AC1000V
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

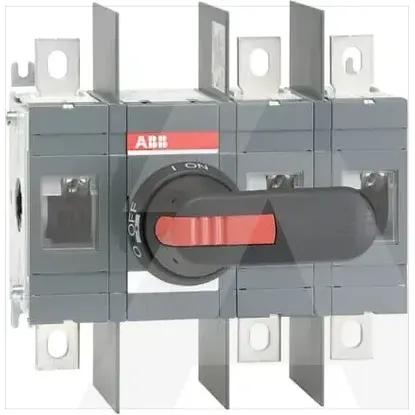

1SCA022754R6960 | OT400U12P
