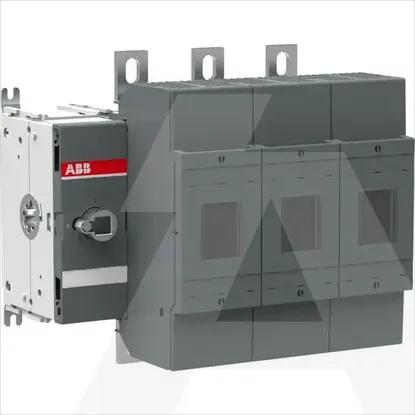

1SCA022755R0810 | OS400J03
Code: 1981725
ManufacturerABB
Catalog number1SCA022755R0810
TypeFuse switch disconnector
CategoryFuse switch disconnector
EAN code6417019246116
Details
- •Low-voltage industrial components
- •Fuse switch disconnector
- •1 KOM
- •ABB
Technical specifications
Motor drive integratedNo
Version as main switchYes
Version as emergency stop installationNo
Type of electrical connection of main circuitBolt connection
Suitable for floor mountingNo
Conditioned rated short-circuit current Iq80kA
Rated short-time withstand current lcw14kA
With error protectionNo
Rated operation power at AC-23, 400 V400kW
Type of control elementShort thumb-grip
Position control elementLeft
Equipped with connectorsYes
Suitable for busbar mountingYes
Version as safety switchYes
Cable entryOther
Suitable for front mountingNo
Motor drive optionalNo
Rated permanent current Iu400A
Number of poles3
Suitable for fusesOther
Max. rated operation voltage Ue AC1000V
