Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •ABB
Technical specifications
Width131.5mm
Depth82.5mm
Height170mm
Rated operation power at AC-3, 400 V-kW
Number of auxiliary contacts as normally open contact0
Degree of protection (IP), front sideIP00
Number of switches1
Number of poles2
Number of auxiliary contacts as normally closed contact0
Width in number of modular spacings-
Version as emergency stop installationNo
Type of electrical connection of main circuitBolt connection
Rated permanent current Iu200A
Conditioned rated short-circuit current Iq-kA
InterlockableNo
Motor drive integratedNo
Rated operating voltage1000 - 1000V
Number of auxiliary contacts as change-over contact0
Suitable for front mounting centreNo
Suitable for floor mountingNo
Suitable for front mounting 4-holeNo
Rated operation power at AC-23, 400 V-kW
Version as main switchYes
Version as maintenance-/service switchYes
Version as safety switchNo
Type of control elementOther
Rated short-time withstand current lcw8kA
Suitable for distribution board installationYes
Suitable for intermediate mountingNo
Rated permanent current at AC-23, 400 V-A
Voltage release optionalNo
Rated permanent current at AC-21, 400 V-A
Max. rated operation voltage Ue AC1000V
With pre-assembled cablingNo
Switching power at 400 V-kW
Version as reversing switchNo
Motor drive optionalNo
Degree of protection (NEMA)Other
Device constructionComplete device in housing
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

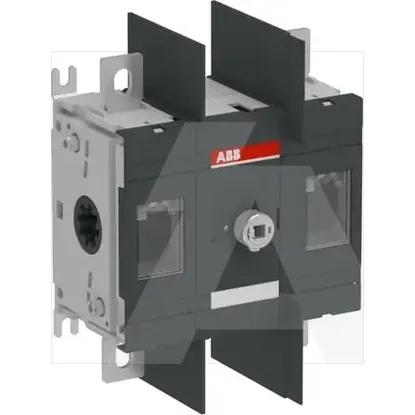

1SCA022757R3690 | OT200U11
