Details
- •Low-voltage industrial components

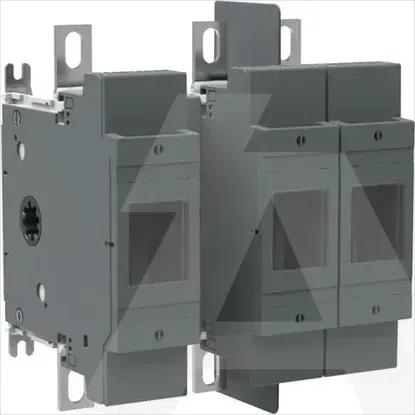

- •Fuse switch disconnector
- •1 KOM
- •ABB
Technical specifications
Version as emergency stop installationNo
Type of electrical connection of main circuitBolt connection
Suitable for fusesOther
Version as main switchYes
Rated permanent current Iu200A
Conditioned rated short-circuit current Iq80kA
Version as safety switchYes
Type of control elementShort thumb-grip
Number of poles3
Cable entryOther
Motor drive integratedNo
With error protectionNo
Max. rated operation voltage Ue AC1000V
Rated short-time withstand current lcw8kA
Suitable for floor mountingNo
Motor drive optionalNo
Rated operation power at AC-23, 400 V200kW
Suitable for busbar mountingYes
Suitable for front mountingNo
Position control elementFront side
Equipped with connectorsYes
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
1SCA022758R7990 | OS200J12
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage industrial components
- Fuse switch disconnector
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Version as emergency stop installation
Type of electrical connection of main circuit
Bolt connection
Suitable for fuses
Other
Version as main switch
Rated permanent current Iu
200A
Conditioned rated short-circuit current Iq
80kA
Version as safety switch
Type of control element
Short thumb-grip
Number of poles
3
Cable entry
Other
Motor drive integrated
With error protection
Max. rated operation voltage Ue AC
1000V
Rated short-time withstand current lcw
8kA
Suitable for floor mounting
Motor drive optional
Rated operation power at AC-23, 400 V
200kW
Suitable for busbar mounting
Suitable for front mounting
Position control element
Front side
Equipped with connectors
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
