Details
- •Low-voltage industrial components

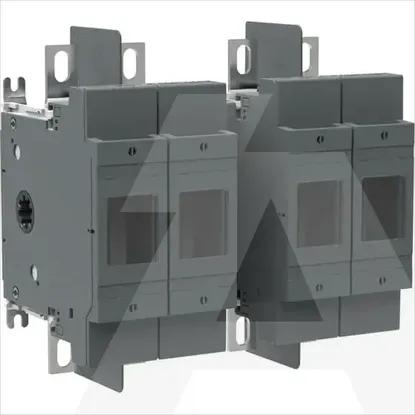

- •Fuse switch disconnector
- •1 KOM
- •ABB
Technical specifications
Conditioned rated short-circuit current Iq80kA
Rated permanent current Iu200A
Number of poles4
Cable entryOther
Suitable for fusesOther
Rated short-time withstand current lcw8kA
Type of control elementShort thumb-grip
Suitable for front mountingNo
Version as main switchYes
Suitable for busbar mountingYes
Version as safety switchYes
Type of electrical connection of main circuitBolt connection
Motor drive integratedNo
Suitable for floor mountingNo
Rated operation power at AC-23, 400 V200kW
Motor drive optionalNo
Position control elementFront side
Max. rated operation voltage Ue AC1000V
With error protectionNo
Version as emergency stop installationNo
Equipped with connectorsYes
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
1SCA022758R9420 | OS200J22F
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage industrial components
- Fuse switch disconnector
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Conditioned rated short-circuit current Iq
80kA
Rated permanent current Iu
200A
Number of poles
4
Cable entry
Other
Suitable for fuses
Other
Rated short-time withstand current lcw
8kA
Type of control element
Short thumb-grip
Suitable for front mounting
Version as main switch
Suitable for busbar mounting
Version as safety switch
Type of electrical connection of main circuit
Bolt connection
Motor drive integrated
Suitable for floor mounting
Rated operation power at AC-23, 400 V
200kW
Motor drive optional
Position control element
Front side
Max. rated operation voltage Ue AC
1000V
With error protection
Version as emergency stop installation
Equipped with connectors
