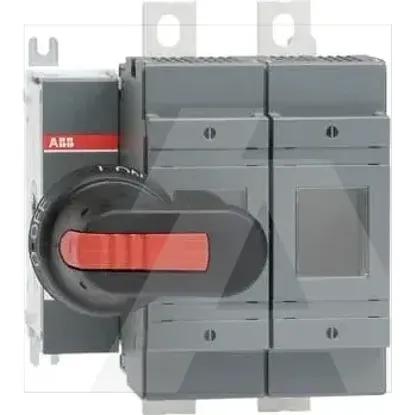

1SCA022760R0170 | OS250D02P
Code: 1981746
ManufacturerABB
Catalog number1SCA022760R0170
TypeFuse switch disconnector
CategoryFuse switch disconnector
EAN code6417019247632
Details
- •Low-voltage industrial components
- •Fuse switch disconnector
- •1 KOM
- •ABB
Technical specifications
Motor drive integratedNo
Version as main switchYes
Version as safety switchYes
Type of electrical connection of main circuitBolt connection
Cable entryOther
Type of control elementLong turning handle
Version as emergency stop installationNo
Conditioned rated short-circuit current Iq80kA
Rated operation power at AC-23, 400 V250kW
Motor drive optionalNo
Equipped with connectorsYes
Suitable for front mountingNo
Position control elementLeft
Rated short-time withstand current lcw8kA
With error protectionNo
Suitable for floor mountingNo
Suitable for busbar mountingYes
Rated permanent current Iu250A
Number of poles2
Suitable for fusesNH0
Max. rated operation voltage Ue AC1000V
