Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •ABB
Technical specifications
Number of poles4
Rated permanent current Iu400A
Number of auxiliary contacts as normally closed contact0
Rated operating voltage1000 - 1000V
Rated operation power at AC-3, 400 V-kW
Width280mm
Depth105mm
Height220mm
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as change-over contact0
Version as emergency stop installationNo
Degree of protection (IP), front sideIP00
Width in number of modular spacings-
Version as safety switchNo
Number of switches1
Motor drive integratedNo
InterlockableNo
Version as main switchYes
Type of control elementOther
Conditioned rated short-circuit current Iq-kA
Version as maintenance-/service switchYes
Type of electrical connection of main circuitBolt connection
Rated short-time withstand current lcw15kA
Rated operation power at AC-23, 400 V220kW
Suitable for front mounting centreNo
Suitable for distribution board installationYes
Rated permanent current at AC-21, 400 V-A
Motor drive optionalNo
Suitable for floor mountingNo
Suitable for intermediate mountingNo
Version as reversing switchNo
Rated permanent current at AC-23, 400 V400A
Suitable for front mounting 4-holeNo
Voltage release optionalNo
Max. rated operation voltage Ue AC1000V
Switching power at 400 V220kW
Device constructionComplete device in housing
With pre-assembled cablingNo
Degree of protection (NEMA)Other
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

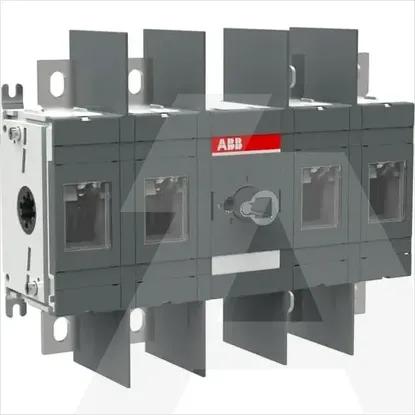

1SCA022762R7110 | OT400U22
