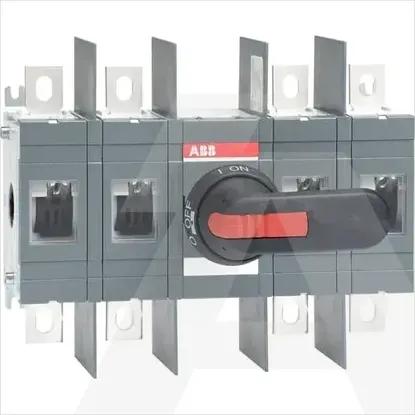

Details
- •Low-voltage industrial components
- •Switch disconnector
- •1 KOM
- •ABB
Technical specifications
Rated operation power at AC-3, 400 V-kW
Number of auxiliary contacts as change-over contact0
Rated permanent current Iu400A
Number of switches1
Rated operating voltage1000 - 1000V
Number of poles4
Number of auxiliary contacts as normally open contact0
Degree of protection (IP), front sideOther
Version as maintenance-/service switchYes
Motor drive integratedNo
Type of control elementLong turning handle
Type of electrical connection of main circuitBolt connection
Version as emergency stop installationNo
Rated short-time withstand current lcw15kA
Conditioned rated short-circuit current Iq-kA
InterlockableYes
Rated operation power at AC-23, 400 V220kW
Version as safety switchNo
Version as main switchYes
Number of auxiliary contacts as normally closed contact0
Suitable for front mounting centreNo
Colour control elementBlack
Suitable for floor mountingNo
Suitable for front mounting 4-holeNo
Suitable for distribution board installationYes
Suitable for intermediate mountingNo
Rated permanent current at AC-21, 400 V400A
Switching power at 400 V220kW
Motor drive optionalNo
Device constructionBuilt-in device fixed built-in technique
Voltage release optionalNo
Version as reversing switchNo
Degree of protection (NEMA)1
Rated permanent current at AC-23, 400 V400A
Max. rated operation voltage Ue AC1000V
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
1SCA022762R7290 | OT400U22P
