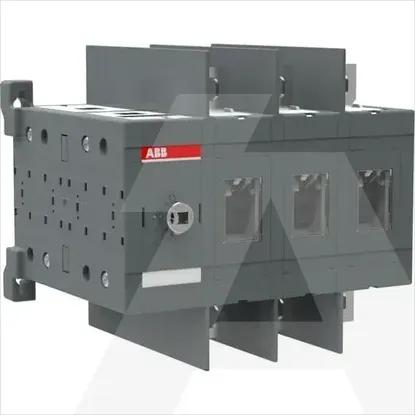

Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •ABB
Technical specifications
Width194mm
Rated operation power at AC-3, 400 V-kW
Depth160mm
Number of auxiliary contacts as normally open contact0
Height150mm
Number of auxiliary contacts as normally closed contact0
Number of poles3
Conditioned rated short-circuit current Iq-kA
Rated permanent current Iu-A
Rated operating voltage1000 - 1000V
Number of auxiliary contacts as change-over contact0
InterlockableYes
Rated operation power at AC-23, 400 V-kW
Colour control elementBlack
Version as safety switchNo
Degree of protection (IP), front sideIP20
Type of control elementOther
Width in number of modular spacings-
Motor drive integratedNo
Version as maintenance-/service switchYes
Version as main switchYes
Type of electrical connection of main circuitScrew connection
Suitable for floor mountingNo
Version as emergency stop installationNo
Rated short-time withstand current lcw8kA
Suitable for front mounting centreNo
Suitable for front mounting 4-holeYes
Number of switches1
Suitable for distribution board installationYes
Rated permanent current at AC-21, 400 V200A
Voltage release optionalNo
Suitable for intermediate mountingNo
Motor drive optionalNo
Device constructionBuilt-in device plug-in technique
Max. rated operation voltage Ue AC1000V
Switching power at 400 V-kW
With pre-assembled cablingNo
Degree of protection (NEMA)1
Rated permanent current at AC-23, 400 V200A
Version as reversing switchNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
1SCA022767R8610 | OT200U03C
