Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •ABB
Technical specifications
Rated operation power at AC-3, 400 V-kW
Depth203mm
Width305mm
Rated permanent current Iu-A
Height185mm
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as normally closed contact0
Number of poles4
Conditioned rated short-circuit current Iq-kA
Rated operating voltage1000 - 1000V
InterlockableYes
Number of auxiliary contacts as change-over contact0
Suitable for front mounting 4-holeYes
Motor drive optionalNo
Version as emergency stop installationNo
Suitable for distribution board installationYes
Max. rated operation voltage Ue AC1000V
Colour control elementBlack
Width in number of modular spacings-
Suitable for floor mountingNo
Version as main switchYes
Rated short-time withstand current lcw15kA
Version as safety switchNo
Suitable for front mounting centreNo
Type of control elementOther
Type of electrical connection of main circuitScrew connection
Rated operation power at AC-23, 400 V-kW
Motor drive integratedNo
Version as maintenance-/service switchYes
Degree of protection (IP), front sideIP20
Suitable for intermediate mountingNo
Number of switches1
Voltage release optionalNo
Device constructionBuilt-in device plug-in technique
Rated permanent current at AC-21, 400 V400A
With pre-assembled cablingNo
Rated permanent current at AC-23, 400 V400A
Version as reversing switchNo
Switching power at 400 V-kW
Degree of protection (NEMA)1
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

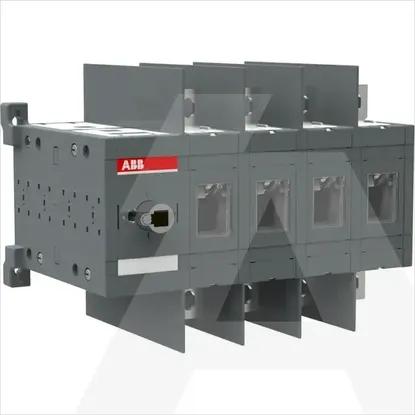

1SCA022771R2210 | OT400U04C
