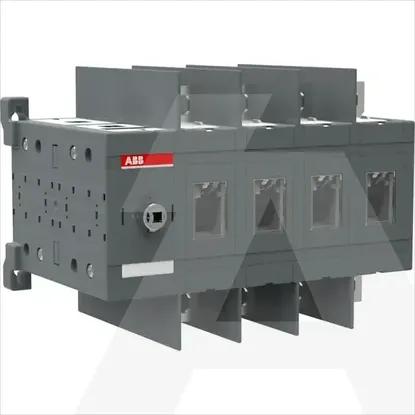

1SCA022771R6120 | OT200U04C
Code: 1981762
ManufacturerABB
Catalog number1SCA022771R6120
TypeSwitch disconnector (low voltage)
CategorySwitch disconnector
EAN code6417019251790
Details
- •OT200U04C CHANGE-OVER SWITCH
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •Minimum order quantity: 1 pcs
- •ABB
Technical specifications
Width237mm
Number of auxiliary contacts as normally open contact0
Height150mm
Depth160mm
Number of auxiliary contacts as normally closed contact0
Rated operation power at AC-3, 400 V-kW
Version as emergency stop installationNo
Number of auxiliary contacts as change-over contact0
Conditioned rated short-circuit current Iq-kA
Type of control elementOther
Degree of protection (IP), front sideIP20
InterlockableYes
Number of switches1
Width in number of modular spacings-
Version as main switchYes
Type of electrical connection of main circuitScrew connection
Motor drive integratedNo
Version as safety switchNo
Version as maintenance-/service switchYes
Rated operating voltage1000 - 1000V
Suitable for intermediate mountingNo
Suitable for front mounting 4-holeYes
Voltage release optionalNo
Colour control elementBlack
Rated operation power at AC-23, 400 V-kW
Suitable for front mounting centreNo
Suitable for distribution board installationYes
Rated short-time withstand current lcw8kA
Suitable for floor mountingNo
Motor drive optionalNo
With pre-assembled cablingNo
Degree of protection (NEMA)1
Rated permanent current at AC-23, 400 V200A
Device constructionBuilt-in device plug-in technique
Version as reversing switchNo
Switching power at 400 V-kW
Rated permanent current at AC-21, 400 V200A
Rated permanent current Iu-A
Number of poles4
Max. rated operation voltage Ue AC1000V
