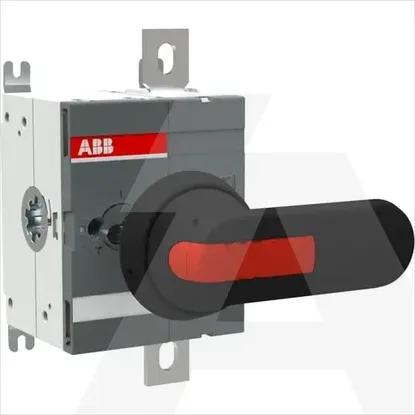

1SCA022774R7010 | OT400E01P
Code: 1981763
ManufacturerABB
Catalog number1SCA022774R7010
TypeSwitch disconnector (low voltage)
CategorySwitch disconnector
EAN code6417019252148
Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •ABB
Technical specifications
Width103mm
Height185mm
Rated operation power at AC-3, 400 V-kW
Number of auxiliary contacts as normally open contact0
Depth107mm
Rated operating voltage1000 - 1000V
Conditioned rated short-circuit current Iq-kA
Number of auxiliary contacts as normally closed contact0
Width in number of modular spacings-
Version as emergency stop installationNo
InterlockableNo
Number of switches1
Version as maintenance-/service switchYes
Type of control elementLong turning handle
Version as safety switchNo
Degree of protection (IP), front sideIP00
Number of auxiliary contacts as change-over contact0
Version as main switchYes
Motor drive integratedNo
Type of electrical connection of main circuitBolt connection
Rated operation power at AC-23, 400 V230kW
Suitable for floor mountingNo
Colour control elementBlack
Rated short-time withstand current lcw15kA
Suitable for front mounting 4-holeNo
Rated permanent current at AC-23, 400 V400A
Suitable for intermediate mountingNo
Suitable for distribution board installationYes
Version as reversing switchNo
Rated permanent current at AC-21, 400 V400A
Motor drive optionalNo
Voltage release optionalNo
With pre-assembled cablingNo
Suitable for front mounting centreNo
Device constructionComplete device in housing
Switching power at 400 V230kW
Degree of protection (NEMA)Other
Rated permanent current Iu400A
Number of poles1
Max. rated operation voltage Ue AC1000V
