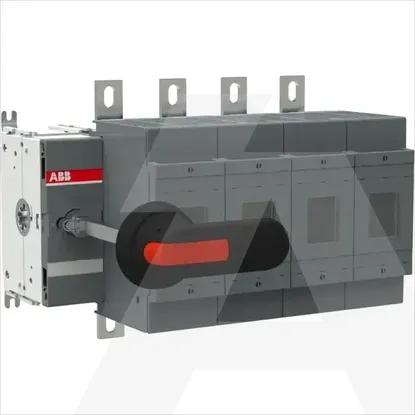

1SCA022782R3210 | OS400D04N1P
Code: 1981768
ManufacturerABB
Catalog number1SCA022782R3210
TypeFuse switch disconnector
CategoryFuse switch disconnector
EAN code6417019254302
Details
- •Low-voltage industrial components
- •Fuse switch disconnector
- •1 KOM
- •ABB
Technical specifications
Cable entryOther
Conditioned rated short-circuit current Iq80kA
Version as main switchYes
Type of electrical connection of main circuitBolt connection
Type of control elementLong turning handle
Suitable for floor mountingNo
Version as emergency stop installationNo
Rated operation power at AC-23, 400 V400kW
Motor drive integratedNo
Version as safety switchYes
Rated short-time withstand current lcw14kA
Suitable for busbar mountingYes
Suitable for front mountingNo
Motor drive optionalNo
With error protectionNo
Position control elementLeft
Equipped with connectorsYes
Rated permanent current Iu400A
Number of poles4
Suitable for fusesNH0
Max. rated operation voltage Ue AC1000V
