Details
- •Low-voltage industrial components
- •Fuse switch disconnector
- •1 KOM
- •ABB
Technical specifications
Motor drive integratedNo
Suitable for fusesNH0
Cable entryOther
Rated permanent current Iu400A
Type of electrical connection of main circuitBolt connection
Conditioned rated short-circuit current Iq80kA
Version as emergency stop installationNo
Type of control elementLong turning handle
Rated short-time withstand current lcw14kA
Version as main switchYes
Suitable for front mountingNo
Suitable for busbar mountingYes
Version as safety switchYes
Suitable for floor mountingNo
Rated operation power at AC-23, 400 V400kW
Number of poles4
With error protectionNo
Position control elementFront side
Max. rated operation voltage Ue AC1000V
Motor drive optionalNo
Equipped with connectorsYes
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

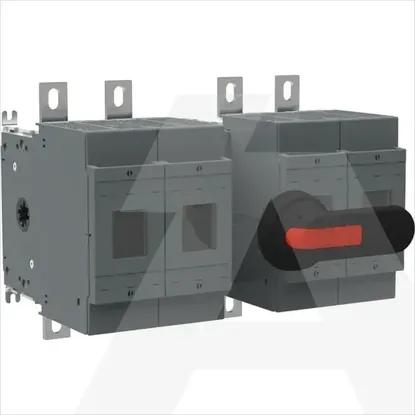

1SCA022782R3800 | OS400D22N1P
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage industrial components
- Fuse switch disconnector
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Motor drive integrated
Suitable for fuses
NH0
Cable entry
Other
Rated permanent current Iu
400A
Type of electrical connection of main circuit
Bolt connection
Conditioned rated short-circuit current Iq
80kA
Version as emergency stop installation
Type of control element
Long turning handle
Rated short-time withstand current lcw
14kA
Version as main switch
Suitable for front mounting
Suitable for busbar mounting
Version as safety switch
Suitable for floor mounting
Rated operation power at AC-23, 400 V
400kW
Number of poles
4
With error protection
Position control element
Front side
Max. rated operation voltage Ue AC
1000V
Motor drive optional
Equipped with connectors
