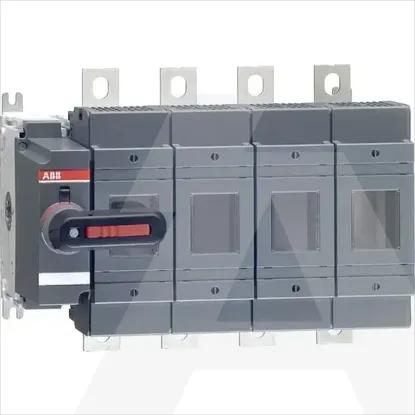

Details
- •Low-voltage industrial components
- •Fuse switch disconnector
- •1 KOM
- •ABB
Technical specifications
Cable entryOther
Version as emergency stop installationNo
Motor drive integratedNo
Type of electrical connection of main circuitBolt connection
Conditioned rated short-circuit current Iq80kA
Version as safety switchYes
Type of control elementLong turning handle
Version as main switchYes
Suitable for front mountingNo
Rated short-time withstand current lcw8kA
Rated operation power at AC-23, 400 V200kW
Equipped with connectorsYes
With error protectionNo
Position control elementLeft
Suitable for busbar mountingYes
Motor drive optionalNo
Suitable for floor mountingNo
Rated permanent current Iu200A
Number of poles4
Suitable for fusesNH0
Max. rated operation voltage Ue AC1000V
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
1SCA022783R1220 | OS200D04FK
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage industrial components
- Fuse switch disconnector
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Cable entry
Other
Version as emergency stop installation
Motor drive integrated
Type of electrical connection of main circuit
Bolt connection
Conditioned rated short-circuit current Iq
80kA
Version as safety switch
Type of control element
Long turning handle
Version as main switch
Suitable for front mounting
Rated short-time withstand current lcw
8kA
Rated operation power at AC-23, 400 V
200kW
Equipped with connectors
With error protection
Position control element
Left
Suitable for busbar mounting
Motor drive optional
Suitable for floor mounting
Rated permanent current Iu
200A
Number of poles
4
Suitable for fuses
NH0
Max. rated operation voltage Ue AC
1000V
