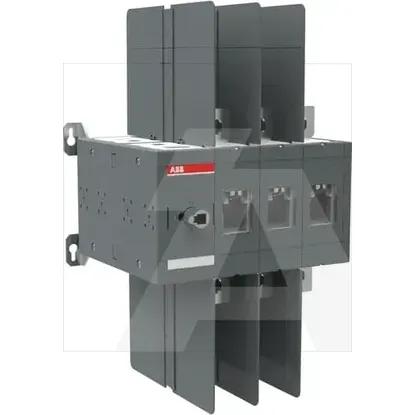

1SCA022785R5590 | OT600U03C
Code: 1981793
ManufacturerABB
Catalog number1SCA022785R5590
TypeSwitch disconnector (low voltage)
CategorySwitch disconnector
EAN code6417019255927
Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •ABB
Technical specifications
Depth280mm
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as normally closed contact0
Degree of protection (IP), front sideIP20
Number of auxiliary contacts as change-over contact0
Height250mm
Rated operating voltage1000 - 1000V
Rated operation power at AC-3, 400 V-kW
Conditioned rated short-circuit current Iq-kA
Width in number of modular spacings-
Width311mm
Suitable for front mounting 4-holeYes
Rated permanent current at AC-21, 400 V800A
Type of control elementOther
Version as reversing switchNo
Colour control elementBlack
Device constructionBuilt-in device plug-in technique
Suitable for distribution board installationYes
Number of switches1
Voltage release optionalNo
Suitable for intermediate mountingNo
Rated short-time withstand current lcw20kA
Version as maintenance-/service switchYes
Rated permanent current at AC-23, 400 V800A
Suitable for front mounting centreNo
Motor drive integratedNo
Switching power at 400 V-kW
Type of electrical connection of main circuitScrew connection
Version as safety switchNo
InterlockableYes
Suitable for floor mountingNo
Motor drive optionalNo
Rated operation power at AC-23, 400 V-kW
Version as main switchYes
Version as emergency stop installationNo
Degree of protection (NEMA)1
With pre-assembled cablingNo
Rated permanent current Iu-A
Number of poles3
Max. rated operation voltage Ue AC1000V
