Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •ABB
Technical specifications
Height250mm
Width311mm
Number of poles3
Number of auxiliary contacts as normally closed contact0
Depth280mm
Width in number of modular spacings-
Number of auxiliary contacts as normally open contact0
Conditioned rated short-circuit current Iq-kA
Rated operation power at AC-3, 400 V-kW
Rated operating voltage1000 - 1000V
Rated permanent current Iu-A
Number of auxiliary contacts as change-over contact0
Degree of protection (IP), front sideIP20
Version as maintenance-/service switchYes
InterlockableYes
Version as main switchYes
Suitable for distribution board installationYes
Max. rated operation voltage Ue AC1000V
Suitable for floor mountingNo
Rated short-time withstand current lcw20kA
Version as safety switchNo
Suitable for front mounting 4-holeYes
Device constructionBuilt-in device plug-in technique
Switching power at 400 V-kW
Suitable for front mounting centreNo
Type of electrical connection of main circuitScrew connection
Motor drive integratedNo
Voltage release optionalNo
Rated operation power at AC-23, 400 V-kW
Number of switches1
Rated permanent current at AC-21, 400 V630A
Version as emergency stop installationNo
Suitable for intermediate mountingNo
Colour control elementBlack
Type of control elementOther
Motor drive optionalNo
Version as reversing switchNo
Degree of protection (NEMA)1
With pre-assembled cablingNo
Rated permanent current at AC-23, 400 V800A
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

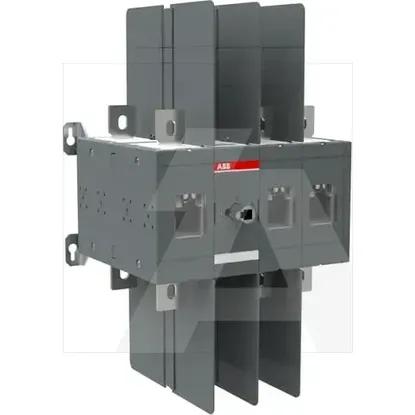

1SCA022786R1640 | OT600U12C
