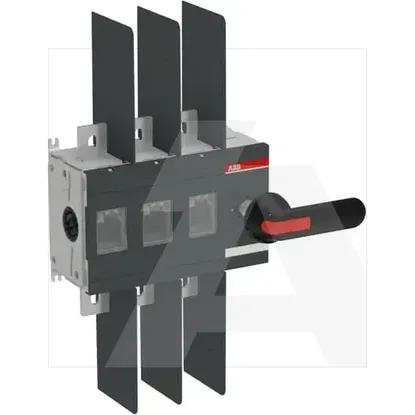

1SCA022797R7430 | OT600U30P
Code: 1981799
ManufacturerABB
Catalog number1SCA022797R7430
TypeSwitch disconnector (low voltage)
CategorySwitch disconnector
EAN code6417019263779
Details
- •OT600U30P SWITCH-DISCONNECTOR
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •Minimum order quantity: 1 pcs
- •ABB
Technical specifications
Width266mm
Width in number of modular spacings-
Number of auxiliary contacts as normally open contact0
Depth140mm
Degree of protection (IP), front sideIP00
Height250mm
Rated operation power at AC-3, 400 V-kW
Number of switches1
Number of auxiliary contacts as change-over contact0
Rated operating voltage1000 - 1000V
Number of auxiliary contacts as normally closed contact0
Conditioned rated short-circuit current Iq-kA
Version as safety switchNo
Motor drive integratedNo
Version as main switchYes
InterlockableNo
Type of electrical connection of main circuitBolt connection
Version as emergency stop installationNo
Type of control elementLong turning handle
Version as maintenance-/service switchYes
Colour control elementBlack
Rated operation power at AC-23, 400 V450kW
Rated short-time withstand current lcw20kA
Suitable for floor mountingNo
Rated permanent current at AC-23, 400 V800A
Device constructionComplete device in housing
With pre-assembled cablingNo
Suitable for intermediate mountingNo
Suitable for front mounting centreNo
Suitable for distribution board installationYes
Version as reversing switchNo
Voltage release optionalNo
Motor drive optionalNo
Switching power at 400 V450kW
Degree of protection (NEMA)Other
Suitable for front mounting 4-holeNo
Rated permanent current at AC-21, 400 V-A
Rated permanent current Iu600A
Number of poles3
Max. rated operation voltage Ue AC1000V
