Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •ABB
Technical specifications
Motor drive integratedNo
Rated permanent current Iu600A
Number of poles3
Number of auxiliary contacts as normally open contact0
Depth140mm
Width266mm
Height250mm
Rated operation power at AC-3, 400 V-kW
InterlockableNo
Width in number of modular spacings-
Number of switches1
Number of auxiliary contacts as change-over contact0
Number of auxiliary contacts as normally closed contact0
Conditioned rated short-circuit current Iq-kA
Rated operating voltage1000 - 1000V
Degree of protection (IP), front sideIP00
Version as emergency stop installationNo
Type of control elementOther
Version as main switchYes
Version as maintenance-/service switchYes
Rated operation power at AC-23, 400 V450kW
Version as safety switchNo
Type of electrical connection of main circuitBolt connection
Motor drive optionalNo
Suitable for intermediate mountingNo
Suitable for front mounting 4-holeNo
Degree of protection (NEMA)Other
With pre-assembled cablingNo
Suitable for distribution board installationYes
Rated permanent current at AC-23, 400 V800A
Max. rated operation voltage Ue AC1000V
Suitable for floor mountingNo
Device constructionComplete device in housing
Rated permanent current at AC-21, 400 V-A
Rated short-time withstand current lcw20kA
Switching power at 400 V450kW
Voltage release optionalNo
Suitable for front mounting centreNo
Version as reversing switchNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

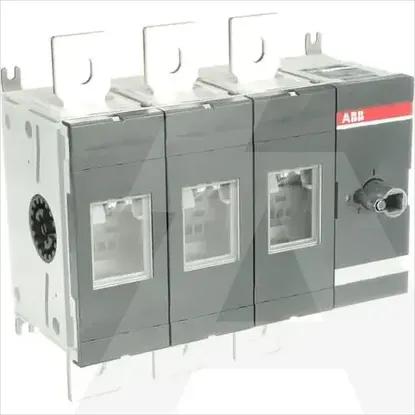

1SCA022798R0650 | OT600U30
