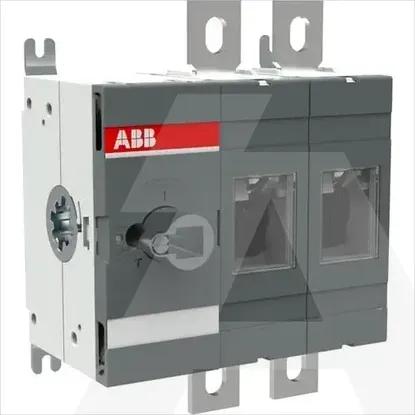

1SCA022799R7110 | OT315E02
Code: 1981802
ManufacturerABB
Catalog number1SCA022799R7110
TypeSwitch disconnector
CategorySwitch disconnector
EAN code6417019264844
Details
- •OT315E02 SWITCH-DISCONNECTOR
- •Low-voltage industrial components
- •Switch disconnector
- •Minimum order quantity: 1 pcs
- •ABB
Technical specifications
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as normally closed contact0
Rated operation power at AC-3, 400 V-kW
Degree of protection (IP), front sideOther
Motor drive integratedNo
Version as emergency stop installationNo
Type of control elementNone
Number of switches1
Version as maintenance-/service switchYes
Type of electrical connection of main circuitBolt connection
Version as safety switchNo
Conditioned rated short-circuit current Iq-kA
Suitable for front mounting 4-holeNo
Rated operation power at AC-23, 400 V180kW
Number of auxiliary contacts as change-over contact0
Motor drive optionalNo
Voltage release optionalNo
Suitable for intermediate mountingNo
Suitable for floor mountingNo
Rated short-time withstand current lcw15kA
Rated operating voltage1000 - 1000V
Version as main switchYes
Suitable for distribution board installationYes
Suitable for front mounting centreNo
InterlockableNo
Rated permanent current at AC-21, 400 V315A
Switching power at 400 V180kW
Device constructionBuilt-in device fixed built-in technique
Degree of protection (NEMA)1
Version as reversing switchNo
Rated permanent current at AC-23, 400 V315A
Rated permanent current Iu315A
Number of poles2
Max. rated operation voltage Ue AC1000V
