Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •ABB
Technical specifications
Height250mm
Width331mm
Depth140mm
Rated operation power at AC-3, 400 V-kW
Rated operating voltage1000 - 1000V
Number of auxiliary contacts as normally closed contact0
Width in number of modular spacings-
Rated permanent current Iu600A
Conditioned rated short-circuit current Iq-kA
Number of auxiliary contacts as normally open contact0
Number of poles4
Degree of protection (IP), front sideIP00
Type of electrical connection of main circuitBolt connection
InterlockableNo
Motor drive integratedNo
Number of switches1
Number of auxiliary contacts as change-over contact0
Version as emergency stop installationNo
Type of control elementOther
Version as main switchYes
Version as safety switchNo
Version as maintenance-/service switchYes
Rated operation power at AC-23, 400 V450kW
Max. rated operation voltage Ue AC1000V
Rated permanent current at AC-23, 400 V800A
Version as reversing switchNo
Motor drive optionalNo
Suitable for floor mountingNo
Suitable for front mounting centreNo
Voltage release optionalNo
Suitable for distribution board installationYes
Switching power at 400 V450kW
Degree of protection (NEMA)Other
Suitable for intermediate mountingNo
Rated short-time withstand current lcw20kA
With pre-assembled cablingNo
Rated permanent current at AC-21, 400 V-A
Device constructionComplete device in housing
Suitable for front mounting 4-holeNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

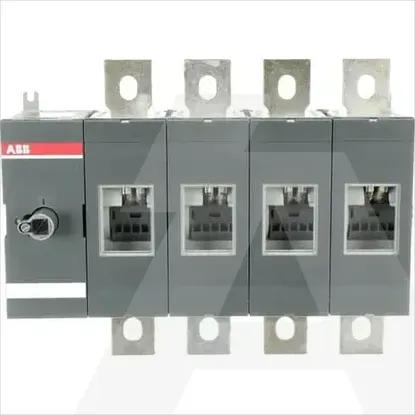

1SCA022800R1750 | OT600U04
